    10 Micron Heat Shield Film Coated Fiberglass Insulation With Aluminum Backing Thermal Sheath

    Ask Lasest Price
    Brand Name : SUNTEX
    Model Number : GF430-AF110–6008
    Certification :
    Payment Terms : T/T; L/C, Paypal...
    Supply Ability : 500000sqm/month
    Delivery Time : 5-20 days
    • Product Details
    • Company Profile

    10 Micron Heat Shield Film Coated Fiberglass Insulation With Aluminum Backing Thermal Sheath

    10 Micron Heat Shield Film Coated Fiberglass Insulation With Aluminum Backing Thermal Sheath


    Product Description

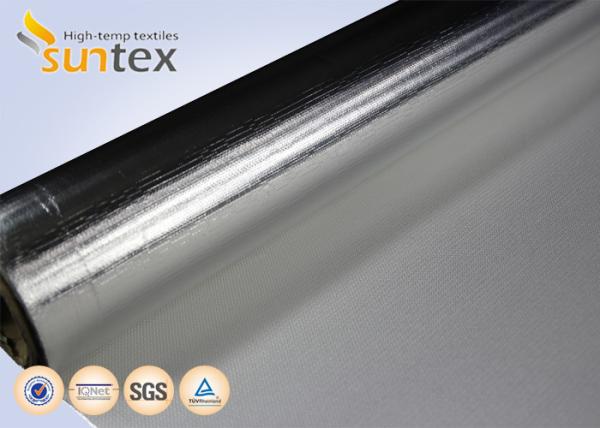

    Aluminum foil/film laminated fiberglass fabrics

    The combination of laminating an aluminum metallic/film heat shield to a layer of protective fiberglass insulation, using fiberglass as the base cloth and special fire-resistant adhesive agent, it can protect personnel or equipment by reflecting radiant heat. Our aluminum foil coated fiberglass cloth has many excellent properties such as the smooth surface on the aluminum foil, non-water permeability, good hermetic and weather resistance, strong light reflection, good stretching resistance in length and breadth, non-breath ability.


    -One side or both sides aluminum foil/film laminated available.

    -The thickness of aluminum foils available from 0.0007mm to 3mm

    -Width of fabrics available from 1000mm to 3000mm.


    BASE FABRICBase fabric style No. GF430
    (Metric)(English)Test methods
    Weave4H SatinCrowfoot
    Yarn
    WarpEC9 33 1*4ECG 150 1/4
    WeftEC9 33 1*4ECG 150 1/4
    Construction
    Warp18 ends /cm48 ± 3 ends/inch
    Weft12.6 picks /cm32 ± 3 picks/inch
    Weight430 ± 20 g/m212.6 ± 0.58 oz/yd2ASTM D3776-96
    Thickness0.37 ± 0.02 mm0.0145 ± 0.0008 inchASTM D1777-96

    COATED FABRICCoating style No. AF110-6008
    CoatingAluminised polymer film ,one side
    Weight450 ± 20 g/m213.2 ± 0.59 oz/yd2ASTM D3776-96
    Thickness0.39 ± 0.03 mm0.015 ± 0.0012 inchASTM D1777-96
    ColorSilver
    Temp resistance

    Glass fabric up to 5500C (10000F)

    Aluminum foil up to 1400C (3000F)


    Product Application

    Exhibition & Example
