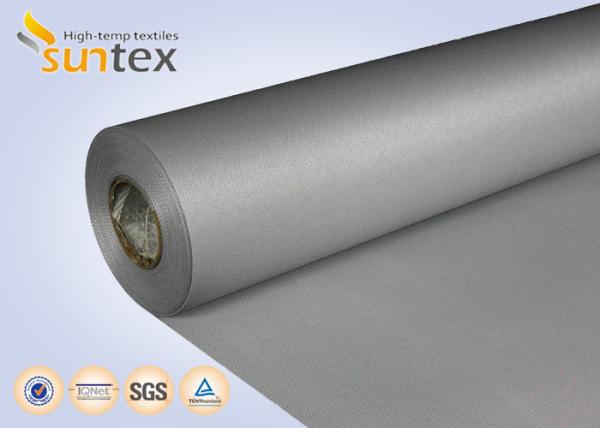

0.4mm Air Distribution PU Coated Fiberglass Fabric Flame Retardant
M0 Certificate
Material Introductions:
Pu coated fiberglass is made of glass fiber fabric with
polyurethane polymer coating;
It withstands temperature up to 180 0C, and 550 C for short bursts.
Pu fiberglass has very good abrasion resistance and good resistance
to oils and solvents.
We produce one-sided/double-sided polyurethane coated fiberglass
fabrics, different colors and widths can be customerized.
It's quite suitable for further fabricating , with its good
mechanical properties.
This type Fiberglass Fabric is a medium weight fiberglass with a specially formulated
polyurethane coating.
It is applied for textile air distribution system.
The other applications are manufacturing of smoke and fire
curtains, fire barriers and other kinds of smoke-stoping and fire
control systems.

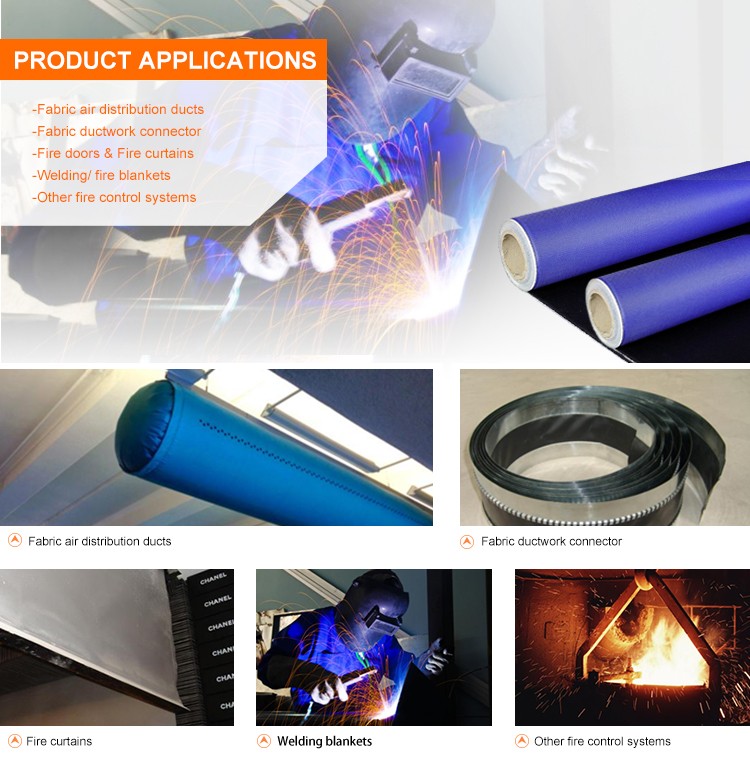

Main applications
- Flexible air distribution ducting.
- Flexible ductwork connector.
- Fire doors & smoke curtains.
| BASE FABRIC | Base fabric style No. GF430P |
| (Metric) | (English) | Test methods |
| Weave | 4H Satin | Crowfoot | |
| Yarn | | | |
| Warp | EC9 136 1/ 0 | ECG 37 1/0 | |
| Weft | EC9 136 1/ 0 | ECG 37 1/0 | |
| Construction | | | |
| Warp | 18 ± 1 ends/cm | 48 ± 3 ends/inch | ASTM D 3775-96 |
| Weft | 12.6 ± 1 picks/cm | 32 ± 3 picks/inch | ASTM D 3775-96 |
| Weight | 430 ± 30 g/m2 | 12.6 ± 0.9 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.37 ± 0.06 mm | 0.015 ± 0.002 inch | ASTM D1777-96 |
| |
| COATED FABRIC | Coating style No. PU213-2004 |
| Coating | Fire retardant, high performance, polyurethane on both sides |
| Weight | 460 ± 20 g/m2 | 13.5 ± 0.59 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.43 ± 0.03 mm | 0.017 ± 0.0012 inch | ASTM D1777-96 |
| Color | Grey/grey | |
| Fire resistance | M0 approvals | NF 92507 |
| Temp resistance | Glass fabric up to 550C (1022F) Polyurethane coating up to 180C (356F) |
Related items recommended:
| Style NO. | Weight | Thickness | Color | Coating |
| (g/m2) | (oz/yd2) | (mm) | (inch) |
| GF430P—PU213-2005 | 460 | 13.5 | 0.40 | 0.015 | Silver Grey | Double side |
| GF430P—PU21B-2007 | 460 | 13.5 | 0.40 | 0.015 | Grey White | Double side |
| GF660S—PU113-2040 | 790 | 23 | 0.70 | 0.027 | Grey | Single side |
| GF660—PU223-2016 | 720 | 21 | 0.71 | 0.0275 | Silver Grey | Double side |
| TGF580—PU113-2019 | 620 | 18 | 0.75 | 0.0295 | Grey | Single side |
| TGF1020—PU111-2025 | 1070 | 31.5 | 1.5 | 0.0590 | Green | Single side |
