    18oz 0.6mm Welding Spatter Protection Woven Fiberglass Cloth Fire Blanket Material

    Ask Lasest Price
    Brand Name : SUNTEX
    Model Number : TGF580-HT
    Certification :
    Payment Terms : T/T; L/C, Paypal...
    Supply Ability : 500000sqm/month
    Delivery Time : 5-20 days
    • Product Details
    • Company Profile

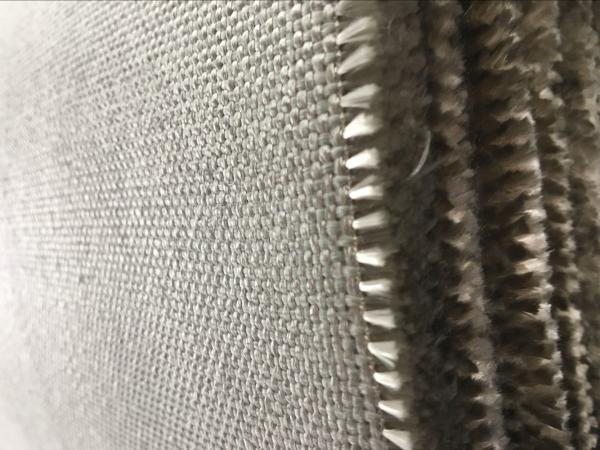

    18oz 0.6mm Welding Spatter Protection Woven Fiberglass Cloth Fire Blanket Material

    18oz 0.6mm Woven Fiberglass Cloth Welding Spatter Protection Fire Blanket Material


    TGF580-HT is a medium weight woven texturized fiberglass fabric with heat treatment . It’s made with 9 micron glass yarn to provide economic yet highly effective thermal and acoustic insulation.


    This fabric support temperatures to 5500C (10000F). Applications for this fabric includes lagging, padding, removable jacket, thermal insulation covers, welding blanket and other fire control system.


    USA reference No. 2025


    Technical Data:


    PROPERTY DATA
    (Metric)(English)Test methods
    WeavePlainPlain
    Yarn
    WarpET9 430 texETG 11.6
    WeftET9 430 texETG 11.6
    Construction
    Warp8 ± 0.8 ends/cm20 ± 2 ends/inchASTM D 3775-96
    Weft5.7 ± 0.6 picks/cm14 ± 1 picks/inchASTM D 3775-96
    Weight580 ± 30 g/m217 ± 0.9 oz/yd2ASTM D3776-96
    Thickness0.63 ± 0.037 mm0.025 ± 0.002 inchASTM D1777-96
    Standard width101.6 ± 1 cm40 ± 0.39 inchASTM D3776-96
    152.4 ± 1 cm60 ± 0.39 inch
    182.9 ± 1 cm72 ± 0.39 inch
    Tensile strength
    Warp2250 N/5 cm257 lbf/inchASTM D5034-95
    Weft1216 N/5 cm140 lbf/inchASTM D5034-95
    Temp resistance5500C10000F

    Advantages:


    1. Good tensile strength.

    2. Good fire resistant.M0 classification.

    3. Flexible,soft, easy to be fabricated.


    Main applications:


    1. Welding barriers

    2. Thermal insulation

    3. Base materials for coating
