    Fire Retardant Silicone Coated Fiberglass Sleeving 100% E - Glass Yarn

    Ask Lasest Price
    Brand Name : SUNTEX
    Model Number : FGS 30
    Payment Terms : T/T, L/C, D/P
    Supply Ability : 20000 m/Month
    Delivery Time : 7-10 days; depends on the deliver volume
    • Product Details
    • Company Profile

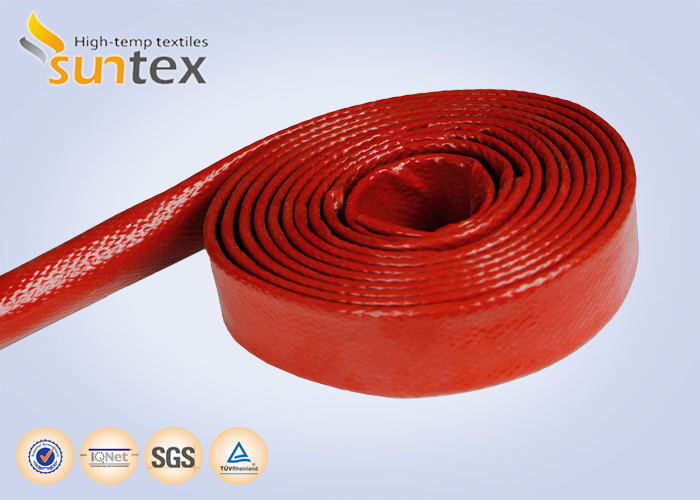

    Fire Retardant Silicone Coated Fiberglass Sleeving 100% E - Glass Yarn

    Item: Fire Retardant Silicone Coated Fiberglass Sleeve For Hose And Cable Protection

    General Information:

    Fiberglass Sleeves are constructed with high-quality Type E fiberglass, with a silicone rubber coating.

    It doesn't burn and resists most acids, alkalis, bleaches, and solvents.With the good abrasion resistance,silicone fiberglass sleeve is an ideal material in heavy duty applications that require outstanding mechanical and electrical properties.

    Besides above,it has a high tear strength, slight expandability for easy installation, excellent flex life and resistance to fatigue.

    Rated for 1000°F (540°C), they act as pipe, hose, and cable protection sleeve providing an excellent thermal barrier.

    It can be used in following industries :

    • Transportation (Aerospace, Auto, Locomotive, Heavy Equipment)
    • Metals, Iron & Steel
    • Hose Fabrication
    • OEM


    Technical Data:

    Description:Texturized fiberglass sleeve with silicone coating
    Contents:100% glass fiber and silicone rubber
    Yarn type:9 um
    Internal Diameter :30mm
    Thermal Conductivity0.035(w/(m.k)
    Continuous Temp resistance:No more than 550 0C
    Freeze temp:-50 0C
    Loss on Ignition≦3.52%
    Chemical composition
    SiO2Al2O3CaOMgOR2OFe2O3

    67.3±0.5 %


    6.4±0.4%


    9.6±0.3%


    4.5±0.3 %


    11.8~16.1%


    ≤0.4


    The other types recommended:

    #Dia(mm)Internal Dia.(mm)Length(m)Thickness(mm)
    SiliconeGlass Yarn
    1Φ1010.5200.81.0
    2Φ1515.5200.91.2
    3Φ2020.5200.91.4
    4Φ2525.52011.6
    5Φ3030.5201.11.8
    6Φ3535.5201.12.0
    7Φ4040.5201.22.1
    8Φ4545.5201.22.2
    9Φ5051.0201.22.3
    10Φ5556.0201.32.4
    11Φ6061.0201.32.5


    Fire Retardant Silicone Coated Fiberglass Sleeving 100% E - Glass Yarn
