    High Silica Fiber Glass Cloth For Welding With Temperature Resistance 2000 F

    Ask Lasest Price
    Brand Name : SUNTEX
    Model Number : GF430P-SI233-1015
    Payment Terms : T/T; L/C, Paypal...
    Supply Ability : 500000sqm/month
    Delivery Time : 5-20 days
    • Product Details
    • Company Profile

    High Silica Fiber Glass Cloth For Welding With Temperature Resistance 2000 F

    Best Quality High Silica Fiber Glass Cloth For Welding With Temperature Resistance 2000 F


    Description:

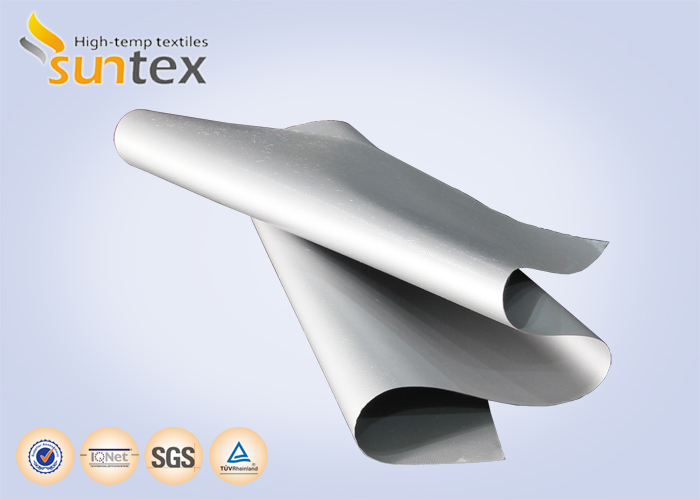

    This GF430P-SI233-1015 is 3732 fiberglass base cloth which is coated with 150 g/m2 grey silicone coating on two sides. The base fiber glass cloth can withstand 550℃ continuously. While silicone coating can withstand temperature below 260℃.

    Silicone coated fiberglass fabric is the most flexible, trackable, and wear resistant fabric. It is made from e-glass woven fiber glass fabric, with properties such as dimensional stability, durability and great tensile strength. Base on silicone coating's properties, this coated fiber glass cloth are always used for fire/welding blanket/curtain, fabric expansion joints/fabric ductwork connector, jacketed vessel insulation covers/exchanger insulation covers and other engineer thermal insulation application.


    Parameter List:


    BASE FABRICBase fabric style No. GF430P
    (metric)(English)Test methods
    Weave4H SatinCrowfoot
    Yarn
    WarpEC9 68 1﹡2ECG 75 1/2
    WeftEC9 68 1﹡2ECG 75 1/2
    Construction
    Warp18 ± 1 ends/cm48 ± 3 ends/inchASTM D 3775-96
    Weft12.6 ± 1 picks/cm32 ± 3 picks/inchASTM D 3775-96
    COATED FABRICCoating style No. SI233-1015
    CoatingSilicone rubber 2 sides
    Weight510 ± 25 g/m215 ± 0.74 oz/yd2ASTM E84-12
    Thickness0.40± 0.02 mm0.016 ± 0.0007 inchASTM E84-12
    Colorgrey
    Fire resistanceM0
    Temp resistance

    Glass fabric up to 5500C (10000F)

    Silicone rubber coating up to 2500C (4800F)


    Main Application:


    Fire blanket

    Welding blanket


    Advantage:


    High temp resistant

    Water proofing

    Excellent non-stick properties

    Water and fire protection

    Good Chemical Resistance

    Superior Flex and Abrasion Resistance
