    1000C High Temperature Fiberglass Cloth , High Silica Glass Fiber Fabric Fire Barrier Cloth

    Ask Lasest Price
    Brand Name : Suntex
    Model Number : SL1200
    Certification :
    Price : Negotiable
    Payment Terms : L/C, D/P, T/T
    Supply Ability : 300000m/month
    Delivery Time : 5-20 days
    • Product Details
    • Company Profile

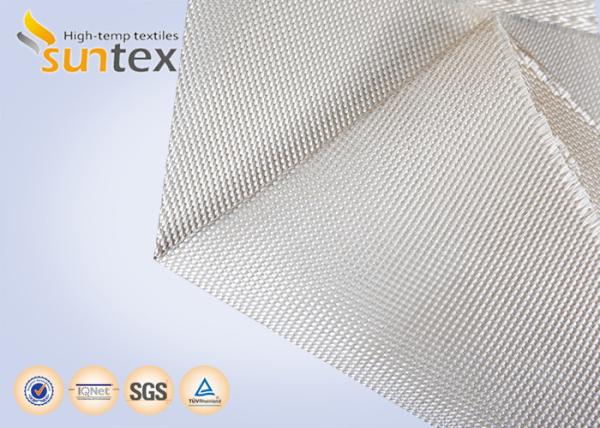

    1000C High Temperature Fiberglass Cloth , High Silica Glass Fiber Fabric Fire Barrier Cloth

    1000C High Temperature Resistant High Silica Glass Fiber Fabric Fire Barrier Cloth

    Product Description

    High silica fiberglass fabric can be effectively used at steady-state temperatures in 1000 degrees to 1700 degrees without deterioration of the formation of cristobalite structure. The silica fabric has been specially developed to use in the applications to protect an extreme temperature environment. They also have excellent chemical resistance and electrical insulation properties.

    BASE FABRICBase fabric style No. SL1200
    (Metric)(English)Test methods
    Weave12 H Satin12 H Satin
    Yarn
    WarpEC9 136 1*2ECG 37 1/2
    WeftEC9 136 1*2ECG 37 1/3
    Construction
    Warp19 ± 1 ends/cm46 ± 2 ends/inch
    Weft14 ± 1 picks/cm33 ± 2 picks/inch
    Weight1200 ± 30 g/m236± 0.9 oz/yd2ASTM D3776-96
    Thickness1.4 ± 0.08 mm0.05± 0.003 inchASTM D1777-96
    COATED FABRICCoating style No.VE216-5022
    CoatingCoated with vermiculite , two sides
    Weight1250 ± 30 g/m236.76 ± 0.88 oz/yd2ASTM D3776-96
    Thickness1.45 ± 0.05 mm0.055 ± 0.0019 inchASTM D1777-96
    Colorbrown
    Flame resistanceYESNF 92507
    Temp resistance

    The maximum working temperature at 1000 0C

    The peak Temp.(melt point) 1700 0C



    product main application
    -Insulation jackets, covers, mattress

    -Fabric expansion joints

    -Fabric ductwork connector

    -Fire doors & Fire curtains

    -Welding/fire blankets

    -Other fire control systems
