    Thermal Insulation Silicone Coated Fiber Glass Fabrics Cloth

    Ask Lasest Price
    Brand Name : SUNTEX
    Model Number : GF200P-SI243-1053
    Payment Terms : T/T; L/C, Paypal...
    Supply Ability : 500000sqm/month
    Delivery Time : 5-20 days
    • Product Details
    • Company Profile

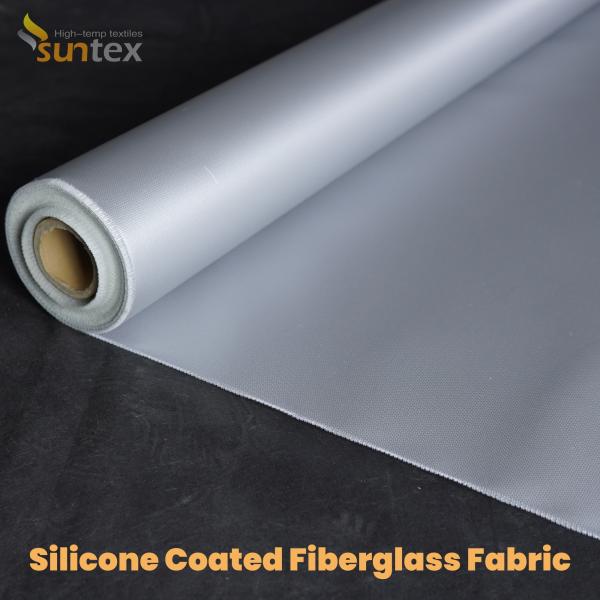

    Thermal Insulation Silicone Coated Fiber Glass Fabrics Cloth

    Grey Color Double Sided Silicone Coated Glass Fabric Insulation , Fire Retardant Curtain Fabric


    Product Description

    Silicone coated fiberglass fabrics

    Silicone coated fiberglass fabrics from Suntex offers good resistance to extreme temperatures, being able to operate normally from -500C to +5500C. It is also anti-corrosive, weatherproof, corrosion resistance, water repellent,anti-aging, good chemical resistance to acids and lye, good mechanical properties.


    Suntex provides one-sided/double-sided silicone coated fiberglass fabrics with many varieties of coating weight, colors, and widths for different applications.


    Main applications:

    1.Shipping, power generation, aerospace, marine
    2.Foundry splash protection, welding defenders, motor vehicle industry

    3.Insulation jackets, mattress, and pad

    4.Fabric expansion joints

    5.Fabric ductwork connector

    6.Fire doors & Fire curtains

    7.Welding/fire blankets

    8.Other fire control systems


    BASE FABRICBase fabric style No. GF430P
    (metric)(English)Test methods
    Weave4H SatinCrowfoot
    Yarn
    WarpEC9 68 1*2ECG 75 1/2
    WeftEC9 68 1*2ECG 75 1/2
    Construction
    Warp18 ± 1 ends/cm48 ± 3 ends/inchASTM D 3775-96
    Weft12.6 ± 1 picks/cm32 ± 3 picks/inchASTM D 3775-96
    Weight430 ± 30 g/m212.6 ± 0.9 oz/yd2ASTM D3776-96
    Thickness0.37 ± 0.06 mm0.015 ± 0.002 inchASTM D1777-96
    COATED FABRICCoating style No. SI244-1017
    CoatingSilicone rubber 2 sides
    Weight590 ± 25 g/m217.4 ± 0.74 oz/yd2ASTM D3776-96
    Thickness0.45± 0.02 mm0.018 ± 0.0007 inchASTM D1777-96
    ColorRed
    Fire resistanceFlame retardant
    Temp resistance

    Glass fabric up to 5500C (10000F)

    Silicone rubber coating up to 2500C (4800F)


    Product Application

    Packaging & Shipping


    Exhibition & Example
